Project - Final Rendering

This is a real-time 3D rendering engine, which is based on BSP scene management and takes advantages of shader model 4.0. The project consists of the World Editor, the Map Compiler and the renderer. In the World Editor, you may create the world geometry based on CSG methods, and set up entities for lighting/rendering or for external purposes. The map will be processed by the Map Compiler and Illumination Solver, which translates the orignal map to a renderable format. The project put emphasis on robust algorithms involved in the World Editor and the Map Compiler, as well as better visual qualities that can be achieved by the current GPU hardware e.g. reflection/refraction surfaces, global specular high-lights, radiosity normal maps, HDR tone mappings, etc. The illumination solver is able to compute high resolution radiosity completely on GPU.

The engine uses OpenGL 3.0 for real-time rendering. The world editor is written in C++, using a UI library (rendered using OpenGL) written myself. The UI library consists of a wide range of controls which is sufficient for most applications.

You can download the source code from http://yongsprojects.codeplex.com

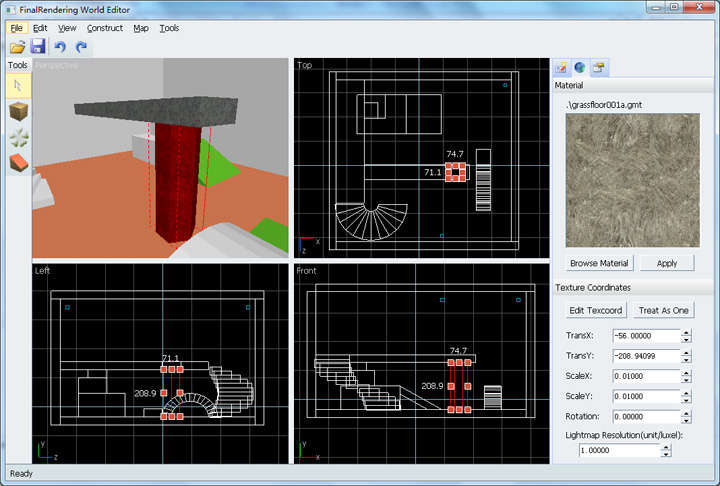

World Editor Screenshot

World Editor. Provides CSG based modeling functions, texture coordinate editing, entity placing and material management.

Scene Screenshot

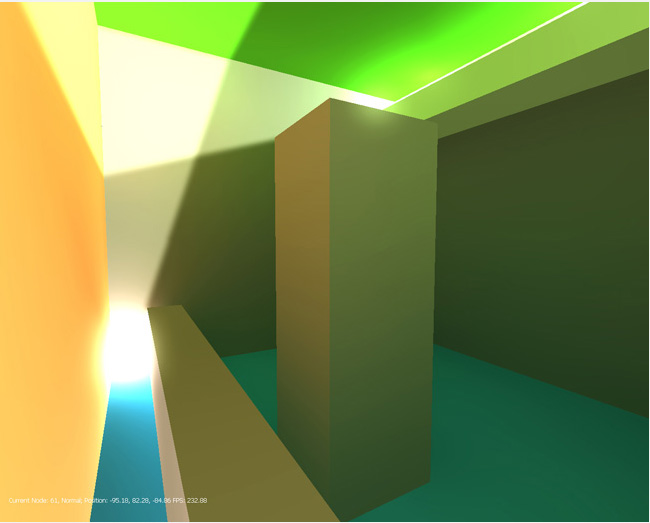

A simple scene being rendered at 220 fps (Geforce 9800GT), demostrating precomputed indirect illumination.

Scene Screenshot

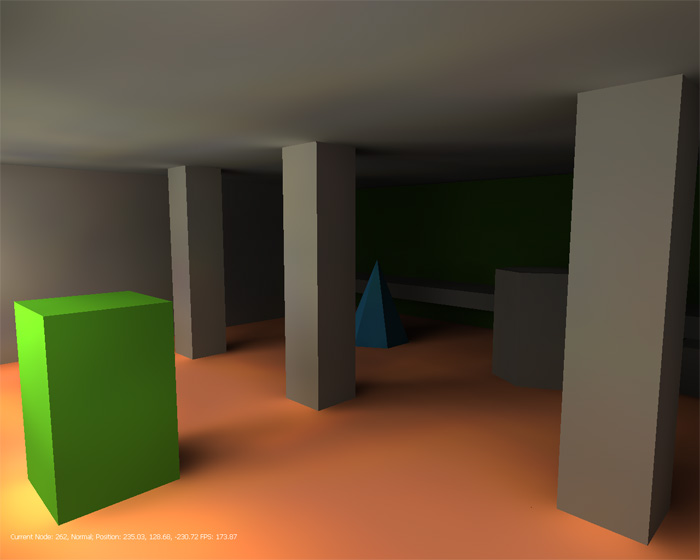

Another scene being rendered at 170 fps (Geforce 9800GT), demostrating precomputed indirect illumination.

Scene Screenshot

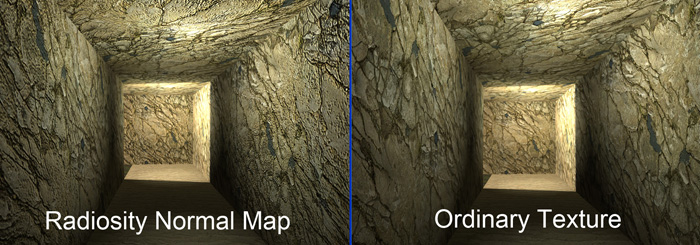

A comparision between radiosity normal map and ordinary texture.

Scene Screenshot

A comparision between radiosity normal map and ordinary texture.

Scene Screenshot

A comparision between radiosity and direct illumination.
